  3. 475.003.080.010
475.003.080.010 475.003.080.010 475.003.080.010 475.003.080.010 475.003.080.010 Plug diagram for 475.003.080.010
475.003.080.010
0.120.469.682+
A132.641

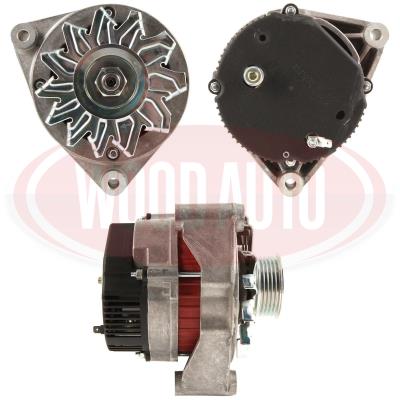

[ALT10217] Alternator Saab 80A
475.003.080.010 supersedes:
WOOALT10217


Additional Details

BrandPLO

Unit of IssueEACH

Weight6.190kg

Intrastat8511500090

CoOCN

Property Value
Brand+Line Original
Voltage (V)12
Amperage (A)80
RotationCW
Pulley TypeFixed
Pulley Grooves5
Pulley Diameter (mm)58
B+ Terminal (30)M8
Plug Code230
Note 1Saab
OEM OEM Reference BOM
BOSCH 0120469611
BOSCH 0120469620
BOSCH 0120469682
BOSCH 0120469683
BOSCH 0120469880
BOSCH 0120469881
BOSCH 0120489310
BOSCH 0120489311
BOSCH 0986033900
BOSCH 0986034120
BOSCH 3390
BOSCH 3412
LUCAS LRA00727
LUCAS LRA00728
LUCAS LRA727
LUCAS LRA728
SAAB 8545675
SAAB 8545741
SAAB 8545758
SAAB 8548240
SAAB 8586059
SAAB 8587214
SAAB 8587924
SAAB 9506221
SAAB 9555251
SAAB 9555269
SAAB 9555285
SAAB 9560954
SAAB 9562752
VALEO 436289
VALEO 436290
Make Model Type Year Info
SAAB 9-5 2.0 t 1997 - 1985cc, 4cyl, 150HP
SAAB 9-5 2.0 t 1998 - 1985cc, 4cyl, 150HP
SAAB 9-5 2.0 t 1998 - 1985cc, 4cyl, 192HP
SAAB 9-5 2.0 t 2000 - 2001 1985cc, 4cyl, 185HP
SAAB 9-5 2.0 t 2000 - 1985cc, 4cyl, 185HP
SAAB 900 2.0 1978 - 1984 1985cc, 4cyl, 109HP
SAAB 900 2.0 1983 - 1984 1985cc, 4cyl, 109HP
SAAB 900 2.0 1984 - 1991 1985cc, 4cyl, 99HP
SAAB 900 2.0 1985 - 1988 1985cc, 4cyl, 99HP
SAAB 900 2.0 1987 - 1991 1985cc, 4cyl, 133HP
SAAB 900 2.0 1989 - 1993 1985cc, 4cyl, 170HP
SAAB 900 2.0 1991 - 1993 1985cc, 4cyl, 145HP
SAAB 900 2.0 -16 1986 - 1988 1985cc, 4cyl, 125HP
SAAB 900 2.0 -16 1989 - 1992 1985cc, 4cyl, 126HP
SAAB 900 2.0 -16 1989 - 1993 1985cc, 4cyl, 126HP
SAAB 900 2.0 -16 1990 - 1994 1985cc, 4cyl, 126HP
SAAB 900 2.0 -16 1991 - 1993 1985cc, 4cyl, 145HP
SAAB 900 2.0 -16 Turbo 1993 - 1998 1985cc, 4cyl, 185HP
SAAB 900 2.0 16v 1990 - 1990 1985cc, 4cyl, 133HP
SAAB 900 2.0 8V Turbo 1988 - 1990 1985cc, 4cyl, 155HP
SAAB 900 2.0 S Turbo-16 1991 - 1993 1985cc, 4cyl, 141HP
SAAB 900 2.0 S Turbo-16 1991 - 1994 1985cc, 4cyl, 141HP
SAAB 900 2.0 S Turbo-16 1992 - 1993 1985cc, 4cyl, 146HP
SAAB 900 2.0 Turbo 1978 - 1985 1985cc, 4cyl, 145HP
SAAB 900 2.0 Turbo 1980 - 1985 1985cc, 4cyl, 146HP
SAAB 900 2.0 Turbo 1986 - 1988 1985cc, 4cyl, 150HP
SAAB 900 2.0 Turbo 1986 - 1991 1985cc, 4cyl, 140HP
SAAB 900 2.0 Turbo-16 1985 - 1993 1985cc, 4cyl, 160HP
SAAB 900 2.0 Turbo-16 1985 - 1994 1985cc, 4cyl, 160HP
SAAB 900 2.0 Turbo-16 1986 - 1994 1985cc, 4cyl, 160HP
SAAB 900 2.0 Turbo-16 1993 - 1994 1985cc, 4cyl, 180HP
SAAB 900 2.0 Turbo-16 S 1984 - 1988 1985cc, 4cyl, 175HP
SAAB 900 2.0 Turbo-16 S 1986 - 1994 1985cc, 4cyl, 175HP
SAAB 900 2.0 Turbo-16 S CAT 1989 - 1993 1985cc, 4cyl, 170HP
SAAB 900 2.0 Turbo-16 S CAT 1989 - 1993 1985cc, 4cyl, 175HP
SAAB 900 2.0 c 1978 - 1984 1985cc, 4cyl, 108HP
SAAB 900 2.0 c 1979 - 1988 1985cc, 4cyl, 100HP
SAAB 900 2.0 c 1980 - 1984 1985cc, 4cyl, 108HP
SAAB 900 2.0 c 1982 - 1988 1985cc, 4cyl, 101HP
SAAB 900 2.0 i 1980 - 1988 1985cc, 4cyl, 115HP
SAAB 900 2.0 i 1980 - 1990 1985cc, 4cyl, 115HP
SAAB 900 2.0 i 1985 - 1990 1985cc, 4cyl, 110HP
SAAB 900 2.0 i 1993 - 1994 1985cc, 4cyl, 133HP
SAAB 900 2.0 i 1993 - 1998 1985cc, 4cyl, 131HP
SAAB 900 2.0 i 1994 - 1998 1985cc, 4cyl, 131HP
SAAB 900 2.1 -16 1990 - 1993 2119cc, 4cyl, 136HP
SAAB 900 2.1 -16 1990 - 1994 2119cc, 4cyl, 136HP
SAAB 900 2.3 -16 1993 - 1998 2290cc, 4cyl, 150HP
SAAB 900 2.5 -24 V6 1993 - 1998 2498cc, 6cyl, 170HP
SAAB 9000 2.0 -16 CD 1993 - 1998 1985cc, 4cyl, 131HP
SAAB 9000 2.0 -16 CD 1993 - 1998 1985cc, 4cyl, 150HP
SAAB 9000 2.0 -16 CS 1989 - 1998 1985cc, 4cyl, 128HP
SAAB 9000 2.0 -16 CS 1993 - 1998 1985cc, 4cyl, 131HP
SAAB 9000 2.0 -16 Turbo 1984 - 1991 1985cc, 4cyl, 175HP
SAAB 9000 2.0 -16 Turbo 1984 - 1993 1985cc, 4cyl, 160HP
SAAB 9000 2.0 -16 Turbo 1985 - 1991 1985cc, 4cyl, 175HP
SAAB 9000 2.0 -16 Turbo 1988 - 1993 1985cc, 4cyl, 160HP
SAAB 9000 2.0 -16 Turbo 1988 - 1993 1985cc, 4cyl, 163HP
SAAB 9000 2.0 -16 Turbo 1989 - 1992 1985cc, 4cyl, 172HP
SAAB 9000 2.0 -16 Turbo 1990 - 1993 1985cc, 4cyl, 172HP
SAAB 9000 2.0 -16 Turbo CD 1988 - 1993 1985cc, 4cyl, 163HP
SAAB 9000 2.0 -16 Turbo CD 1989 - 1998 1985cc, 4cyl, 185HP
SAAB 9000 2.0 -16 Turbo CD 1992 - 1998 1985cc, 4cyl, 147HP
SAAB 9000 2.0 16v 1989 - 1990 1985cc, 4cyl, 195HP
SAAB 9000 2.3 1989 - 1992 2290cc, 4cyl, 150HP
SAAB 9000 2.3 1990 - 1993 2290cc, 4cyl, 150HP
SAAB 9000 2.3 1990 - 1998 2290cc, 4cyl, 224HP
SAAB 9000 2.3 -16 Aero CS 1993 - 1998 2290cc, 4cyl, 220HP
SAAB 9000 2.3 -16 Aero CS 1993 - 1998 2290cc, 4cyl, 224HP
SAAB 9000 2.3 -16 CD 1989 - 1998 2290cc, 4cyl, 146HP
SAAB 9000 2.3 -16 CD Turbo 1990 - 1998 2290cc, 4cyl, 200HP
SAAB 9000 2.3 -16 CDE 1993 - 1998 2290cc, 4cyl, 147HP
SAAB 9000 2.3 -16 CDE Eco-Power 1993 - 1998 2290cc, 4cyl, 170HP
SAAB 9000 2.3 -16 CS 1989 - 1998 2290cc, 4cyl, 146HP
SAAB 9000 2.3 -16 CSE 1993 - 1998 2290cc, 4cyl, 147HP
SAAB 9000 2.3 -16 CSE Eco Power 1993 - 1998 2290cc, 4cyl, 170HP
SAAB 9000 2.3 -16 Turbo 1990 - 1993 2290cc, 4cyl, 195HP
SAAB 9000 2.3 -16 Turbo 1990 - 1998 2290cc, 4cyl, 195HP
SAAB 9000 2.3 -16 Turbo CSE 1993 - 1998 2290cc, 4cyl, 200HP
