1. Units
  2. Alternators
  3. 635.003.055.010
635.003.055.010 635.003.055.010 635.003.055.010 635.003.055.010 Plug diagram for 635.003.055.010
635.003.055.010
0.120.488.290+
A134.247

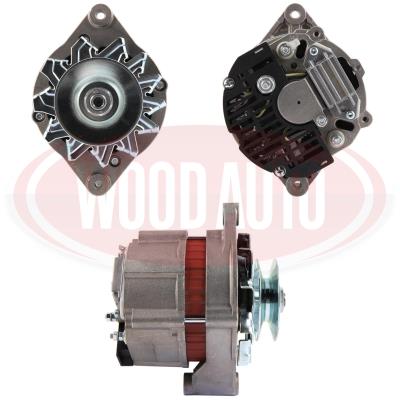

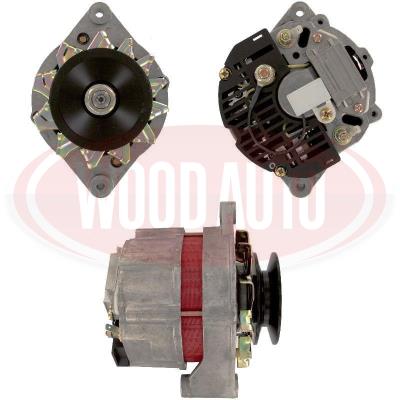

[ALT10169] Alternator John Deere 55A
635.003.055.010 supersedes:
WOOALT10169


Additional Details

BrandPLO

Unit of IssueEACH

Weight5.000kg

Intrastat8511500090

CoOCN

Property Value
Brand+Line Original
Voltage (V)12
Amperage (A)70
RotationCW
Pulley TypeFixed
Pulley Grooves1
Pulley Diameter (mm)87
B+ Terminal (30)M8
Plug Code230
Alternator DesignEF/IR
OE ManufacturerBOSCH
Vehicle ManufacturerJOHN DEERE
OEM OEM Reference BOM
AGCO C000900010140
BOSCH 0120488217
BOSCH 0120488218
BOSCH 0120488267
BOSCH 0120489156
BOSCH 0120489317
BOSCH 0120489703
BOSCH 0120489704
BOSCH 0986037450
BOSCH 0986044591
BOSCH 4459
JOHN DEERE AL67175
JOHN DEERE AL67176
JOHN DEERE AL81436
JOHN DEERE TY6669
LUCAS LRA00621
LUCAS LRA01703
LUCAS LRA621
LUCAS LRB00293
LUCAS LRB293
Make Model Type Year Info
AUSTIN MONTEGO 2.0 Turbo 1984 - 1988 1994cc, 4cyl, 150HP
AUSTIN MONTEGO 2.0 Turbo 1984 - 1990 1994cc, 4cyl, 150HP
MG MONTEGO 2.0 Turbo 1984 - 1988 1994cc, 4cyl, 150HP
MG MONTEGO 2.0 Turbo 1984 - 1990 1994cc, 4cyl, 150HP
ROVER MONTEGO 2.0 GTI/LXI 1990 - 1993 1996cc, 4cyl, 102HP
ROVER MONTEGO 2.0 GTi 1988 - 1991 1994cc, 4cyl, 117HP
ROVER MONTEGO 2.0 i CAT 1990 - 1994 1996cc, 4cyl, 102HP
